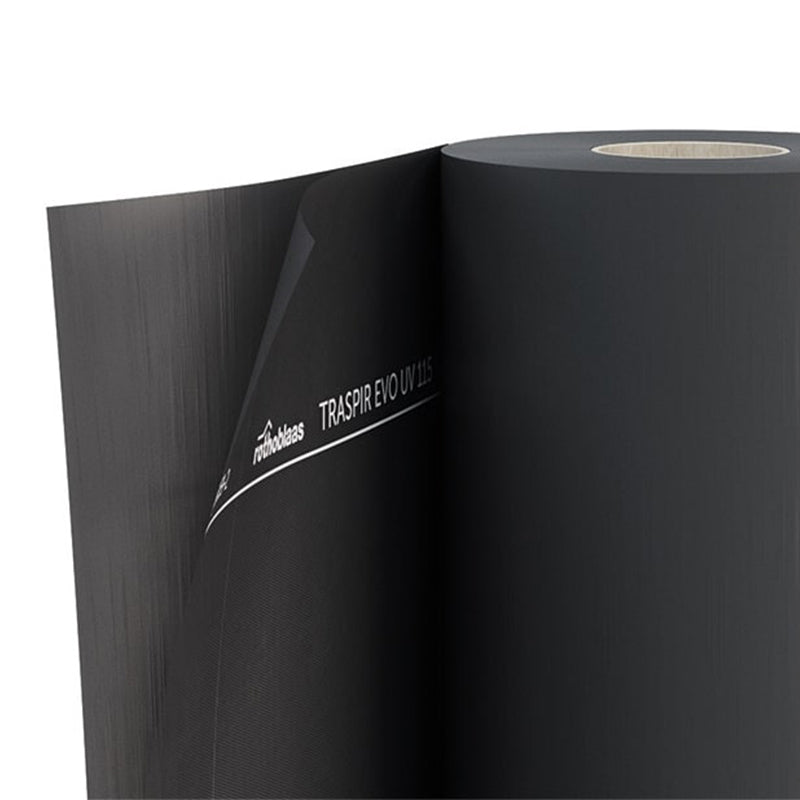

Traspir Evo UV 115

Traspir Eco UV 115 from Rothoblaas

The highly breathable monolithic membrane that is resistant to uv rays

This high performance membrane ensures optimal watertightness and excellent weather resistance thanks to it’s special mix of materials. This exceptional membrane offers great performance for the cost and is flame retardant feature is certified in Euroclass reaction to fire B-s1, d0 according to the standard EN 13501-1.

The Traspir Eco UV 115 monolithic membrane ensures permanent resistance to UV rays with exposure with open joints up to 30 mm wide, and with up to 20% of the surface uncovered.

Thanks to the special chemical composition that is flame retardant, Traspir 115 is suitable for use on applications on facades in direct contact with the ventilation chamber, or in cases in which is visible in internal environments.

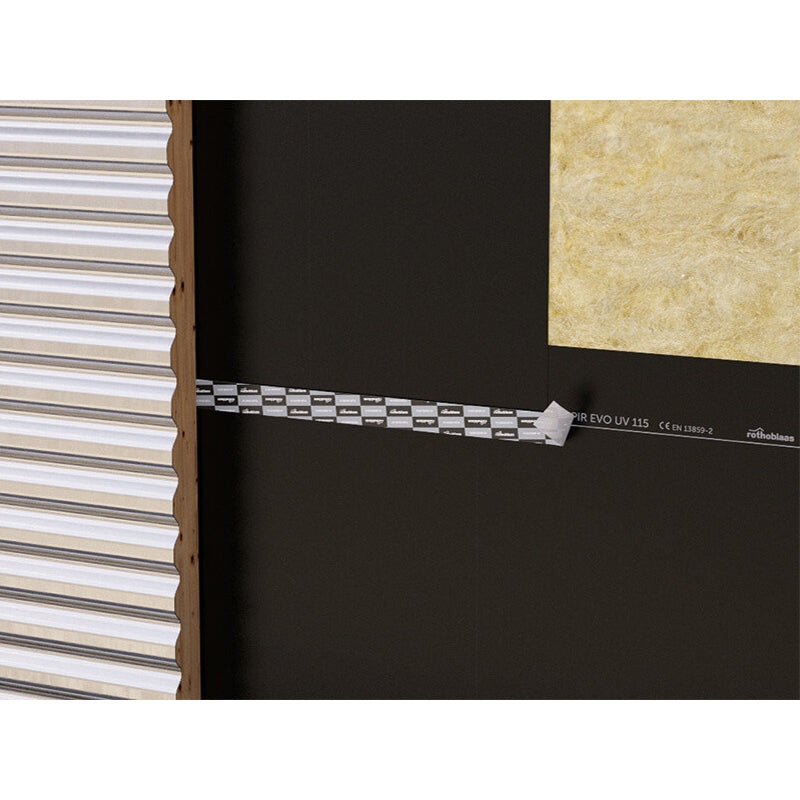

It features an innovative technology that allows it to be used even on metal façades with high temperature fluctuations, without compromising its performance. The Traspir Eco UV 115 membrane is provided with a LCA - Life Cycle Assessment - declaration.

Highly Breathable Airtight Membrane - Sd = 0.05m. 115g/m2. 1.5m x 50m.

Supply and installation of highly breathable monolithic UV-resistant membrane, type Traspir Evo UV 115 CE marking according to : EN 13859-2

Properties:

– Mass per unit area : 115
– Water vapour trasmission (Sd) (m) : 0,08
– Maximum tensile force MD/CD (N/50mm) : 150/110
– Elongation MD/CD (%) : 90/90
– Resistance to tearing MD/CD (N) : 130/170
– Watertightness (class) : classe W1
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+80
– Reaction to fire (class) : B-s1, d0
