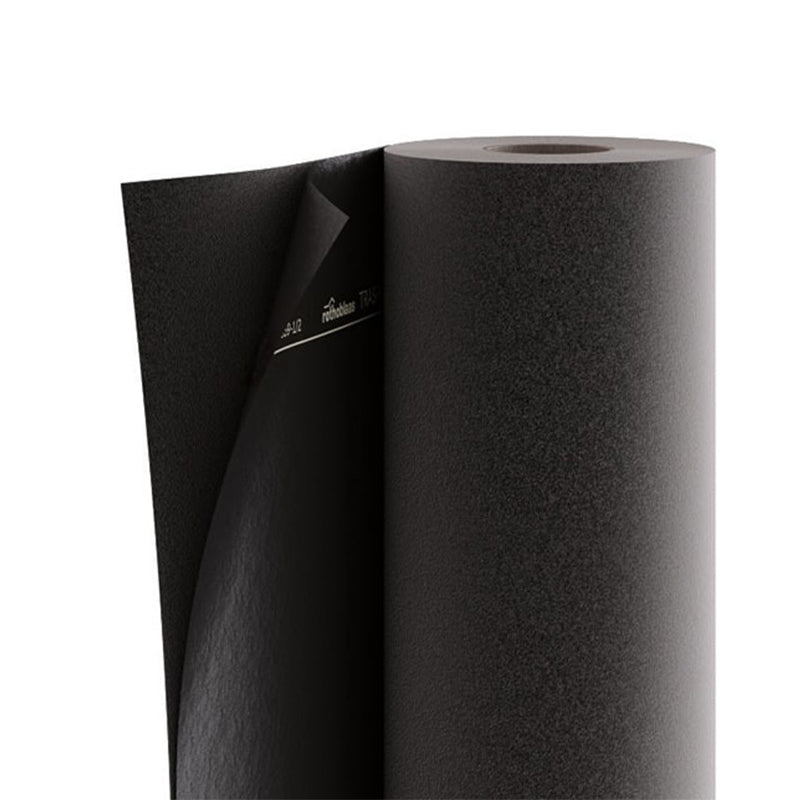

Traspir Evo UV 210

Traspir Eco UV 210 from Rothoblaas

The highly breathable monolithic membrane that is resistant to uv rays

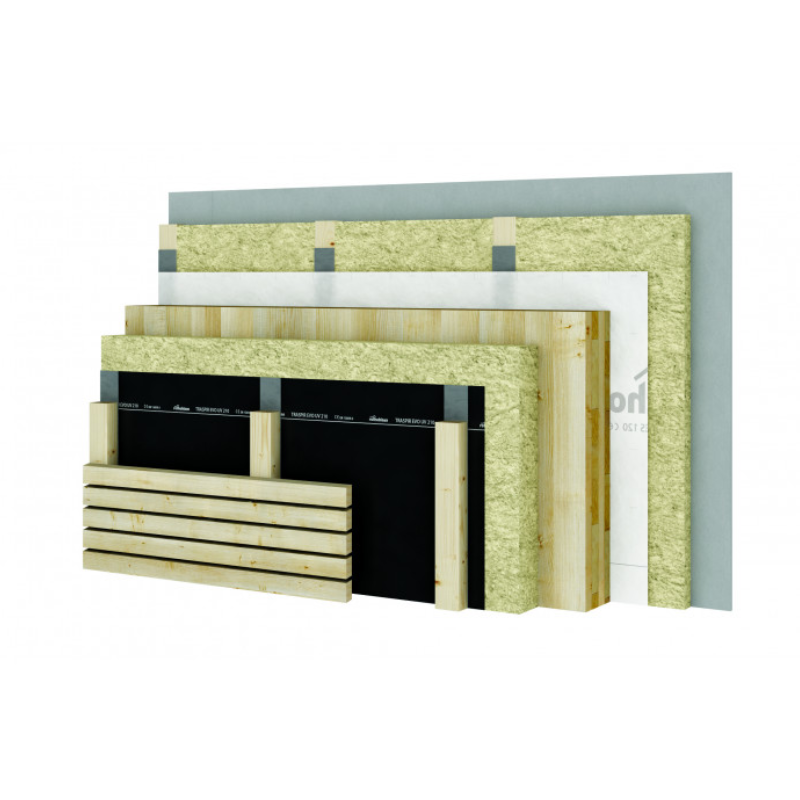

The Eco UV 210 is a highly breathable monolithic membrane characterised by exceptional UV resistance and excellent flame retardant properties. It consists of a monolithic film in acrylic compound coated on a polyester reinforcement and is designed for application on the external side of walls.

Thanks to the acrylate coated surface, the monolithic structure ensures excellent durability, whilst it is also flame retardant certified, Euroclass reaction to fire B-s1, d0 based on EN 13501-1.

With open joints exposure with a width up to 50 mm and a maximum of 40% uncovered area, the Traspir 210 membrane guarantees permanent UV stability. The aesthetic appearance is excellent: thanks to the mass per unit area and the polyacrylate mix, the membrane guarantees high thermal and dimensional stability, features that prevent the formation of swelling during installation.

The integrated double tape ensures a perfect seal; the final appearance is guaranteed by the use of FRONT BAND UV 210, made with the same support, to finish in with the membrane.

Black, Breathable & UV Stable Vapour Control Membrane with B-s1,d0 Fire  Class (Class 0). Self-adhesive Edges. Sd = 0.04m. 210g/m2. For open cladding facades. 1.5 x 50m

Supply and installation of highly breathable monolithic UV-resistant membrane, type Traspir Evo UV 210 CE marking according to : EN 13859-2

Properties:

–Mass per unit area : 210
–Water vapour trasmission (Sd) (m) : 0,04
–Maximum tensile force MD/CD (N/50mm) : 300/200
–Elongation MD/CD (%) : 25/25
–Resistance to tearing MD/CD (N) : 120/120
–Watertightness (class) : classe W1
–VOC emission (COV) (%(class A+)) : 0
–Temperature resistance (°C) : -40/+100
–Reaction to fire (class) : B-s1, d0
