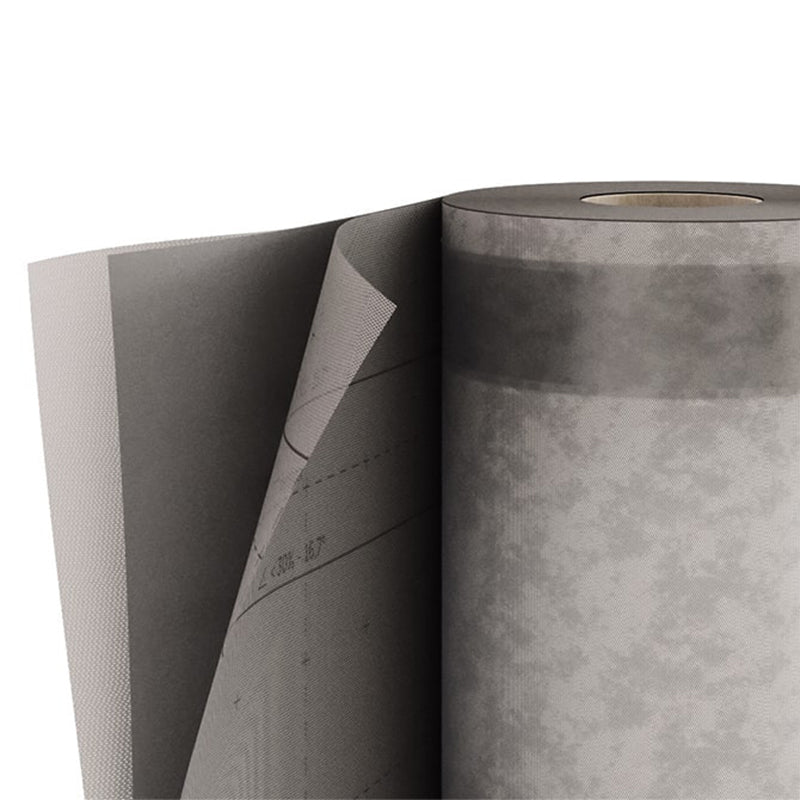

Traspir Evo 160

Traspir Evo 160 from Rothoblaas

The highly breathable monolithic membrane of UV stability and top reaction to fire for your timber structures

Also known as the Traspir House Mono 160 from Holz Technic, this highly breathable monolithic membrane ensures excellent waterproofing and perfect airtightness.

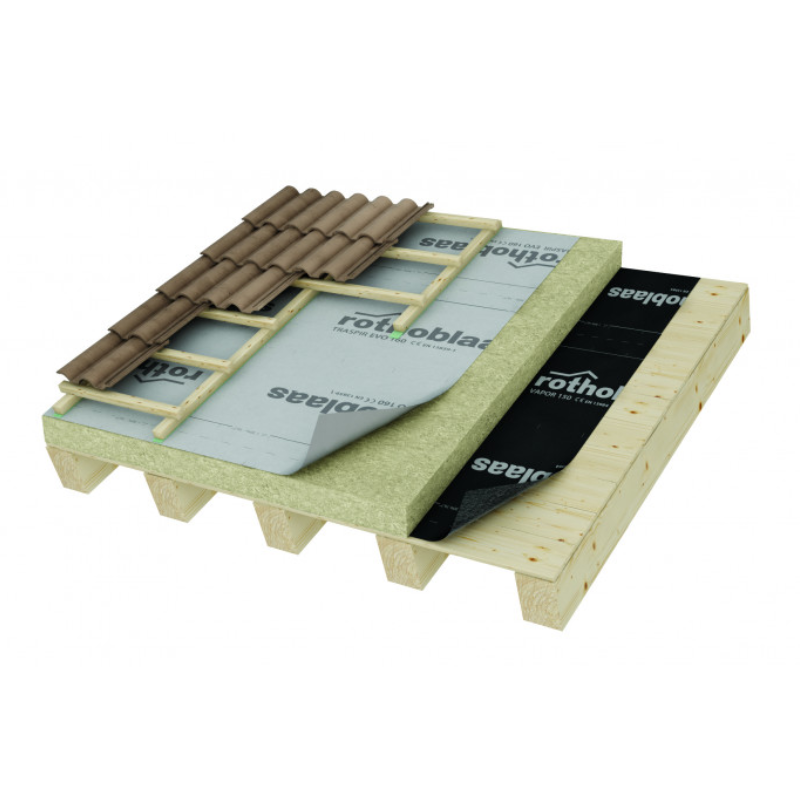

It consists of a monolithic extruded elastomeric film between two polypropylene protection layers and is designed for installation both on the inner and outer side of the roof.

The monolithic structure of the Traspir Evo 160 membrane guarantees excellent durability over time thanks to its special composition, and has passed the artificial ageing test that requires exposure to UV light for 1000 hours.

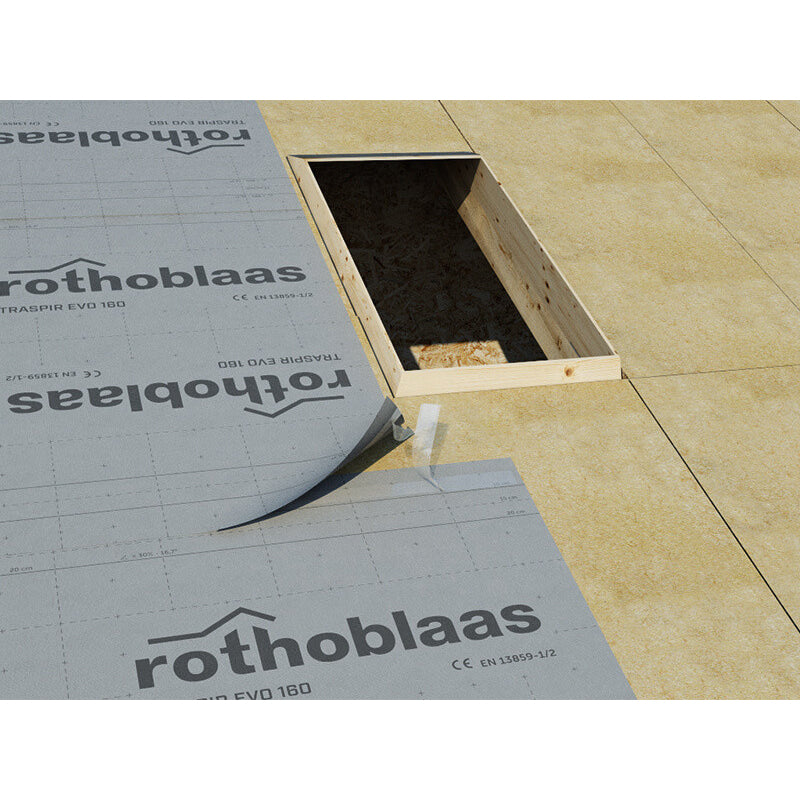

The monolithic functional membrane ensures permeability to water vapour and total impermeability to the passage of water and air. Even in case of temporary exposure to the weather on the construction site, it guarantees high protection against heavy rain, thanks to the professional sealing achieved by means of the integrated double tape. Its resistance to UV rays, with full exposure to radiation and no protection, is excellent.

Supply and installation of highly breathable monolithic membrane , type Traspir Evo 160 CE marking according to : EN 13859-1/2

Properties:

– Mass per unit area : 160
– Water vapour trasmission (Sd) (m) : 0,1
– Maximum tensile force MD/CD (N/50mm) : 280/220
– Elongation MD/CD (%) : 50/60
– Resistance to tearing MD/CD (N) : 180/200
– Watertightness (class) : classe W1
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+80
– Reaction to fire (class) : B-s1, d2
